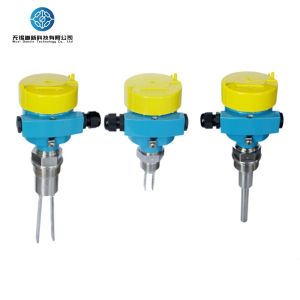

Threaded Side/Top Mount Level Switch with Teflon Coating for Density Materials
The Material Level Switch Series is easy to install and operate. It requires no calibration, which saves time and reduces maintenance costs. The Fork Length ranges from 40mm to 1000mm, depending on the model you choose. This allows you to select the perfect size for your application.
This product is suitable for use with materials that have a density above 0.5 G/cm³. It is designed to work in temperatures ranging from -40°C to 150°C, making it suitable for use in a variety of environments. Additionally, it can operate under pressures of up to 2 MPa (may vary by model).
The Material Level Switch Series is a Bulk Solids Level Switch that is perfect for use in industries such as agriculture, food and beverage, chemical, and pharmaceutical. It is designed to provide reliable and accurate level detection, making it an essential tool for any industrial process.
| Technical Parameter | Description |
|---|---|
| Power Supply | 24V DC, 220V AC, or 110V AC |
| Measurement Medium | Powders, granular solids, liquids |
| Output Signal | Relay, PNP/NPN transistor |
| Weight Density Range | Suitable for materials with a density above 0.5 g/cm³ |
| Ingress Protection Rating | IP65 |
| Operating Pressure | Up to 2 MPa (may vary by model) |
| Process Connection | Threaded, flanged, or tri-clamp |
| Mounting Type | Side-mounted or top-mounted (side-mounted installation recommended) |
| Material of Construction | 304 or 316L stainless steel, optional Teflon coating |
| Response Time | ≤0.5 seconds |
| Additional Features | Sensitivity adjustment for accurate material detection |
With an operating pressure of up to 2 MPa, this solid material level switch is capable of handling various types of materials. Whether you need to measure the level of liquids or powders, the DX-TFLS is a versatile product that can meet your requirements. Its explosion-proof rating of Ex Ia IIC T6 Ga makes it suitable for use in hazardous environments.
One of the key features of this product is its high sensitivity sensors. These sensors can detect even the slightest changes in material level, ensuring accurate measurement. Additionally, the sensitivity is adjustable for different material densities, making it a flexible solution for various applications.
The DX-TFLS Solid Material Level Switch Series is available in different power supply options including 24V DC, 220V AC, or 110V AC. It is also CE and CCC certified, ensuring high quality and safety standards. The minimum order quantity is 1, and the packaging details include a carton. Delivery time is 2-5 work days, and payment terms include T/T, L/C, and Western Union. The supply ability is 100+set+5.
Overall, the DX-TFLS Solid Material Level Switch Series is a reliable and versatile solution for level measurement. Its high sensitivity sensors and adjustable sensitivity make it suitable for a wide range of applications. Whether you need to measure the level of liquids, powders, or granular solids, this product can provide accurate and reliable results.
The Material Level Switch Series product technical support and services include:
- Assistance with installation and configuration
- Troubleshooting and diagnosis of technical issues
- Repair and replacement of faulty components
- Regular maintenance and calibration services
- Product training and education
|
|
